Chapter 10 Visualising Solid Shapes Exercise 10.1
Question 1.

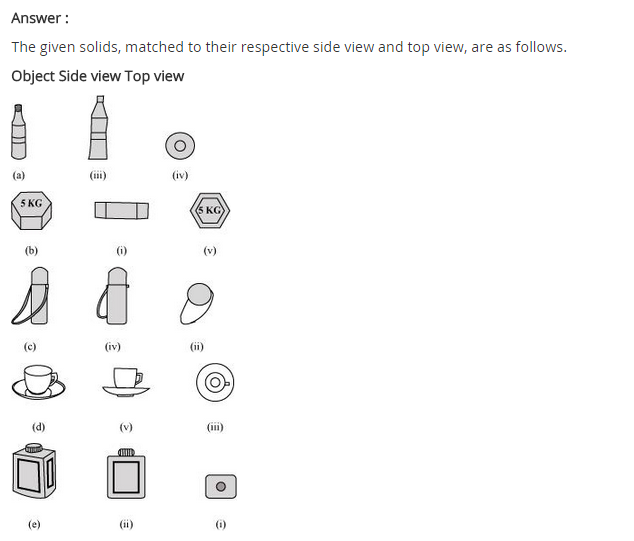

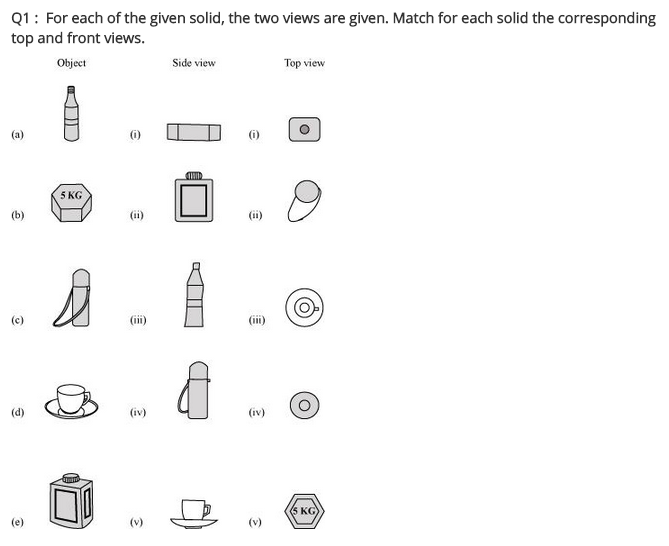

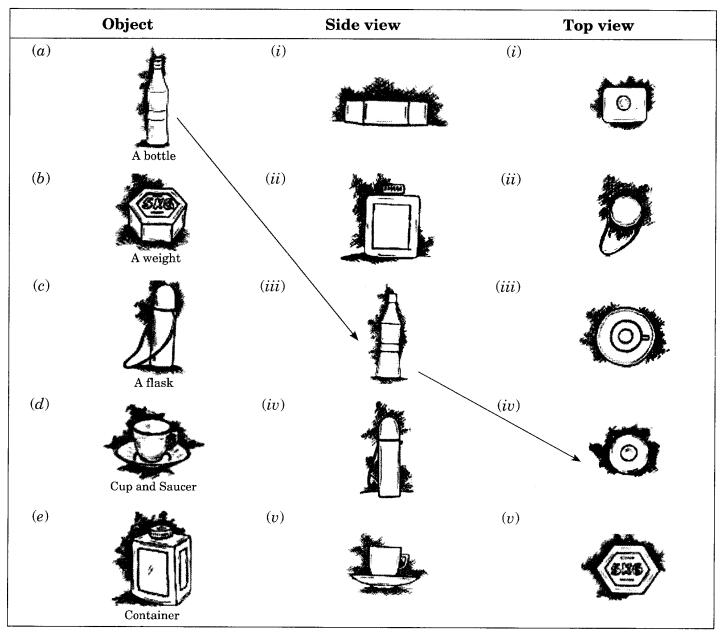

For each of the given solid, the two views are given. Match for each solid the corresponding top and front views. The first one is done for you.
Solution:
(a) A bottle → (iii) → (iv)
(b) A weight → (i) → (v)
(c) A flask → (iv) → (ii)
(d) Cup and saucer → (v) → (iii)
(e) Container → (ii) → (i)
Question 2.

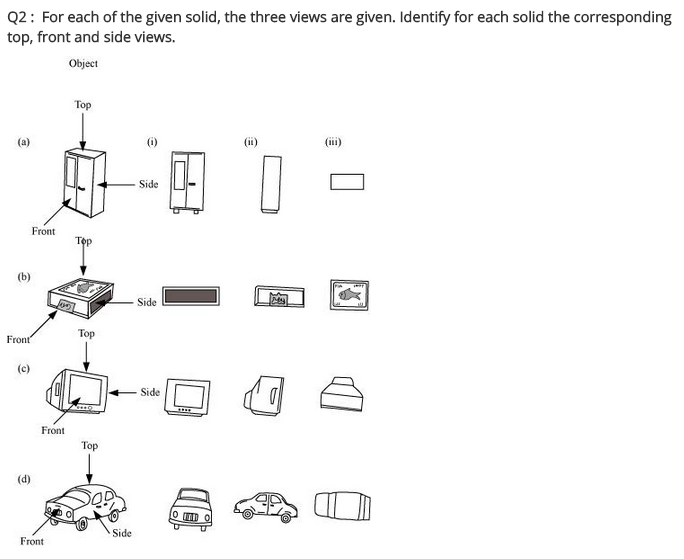

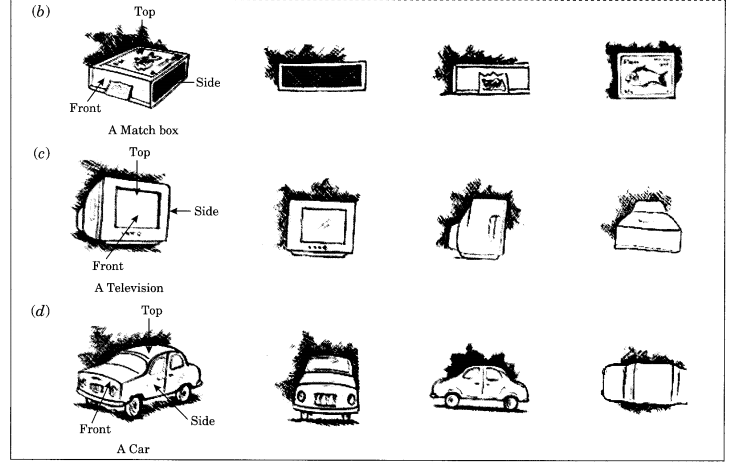

For each of the given solid, the three views are given. Identify for each solid the corresponding top, front and side views.
Solution:

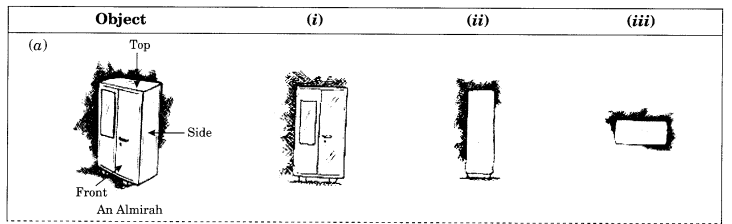

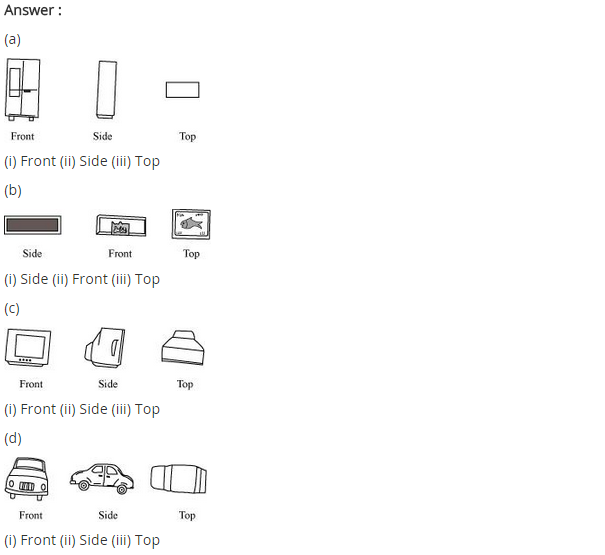

(a) An Almirah → (i) Front → (ii) Side → (iii) Top
(b) A Match box → (i) Side → (it) Front → (iii) Top
(c) A Television → (i) Front → (ii) Side → (iii) Top
(d) A Car → (i) Front → (ii) Side → (iii) Top
Question 3.

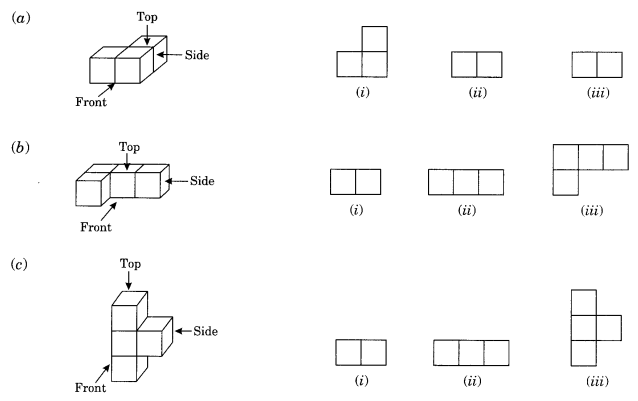

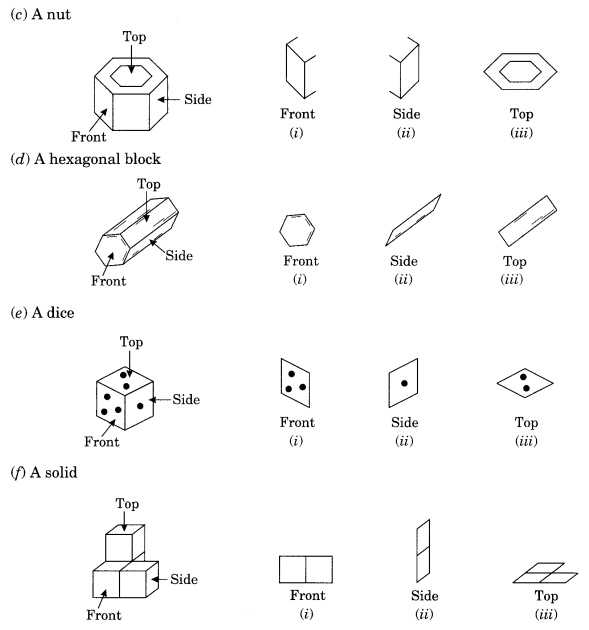

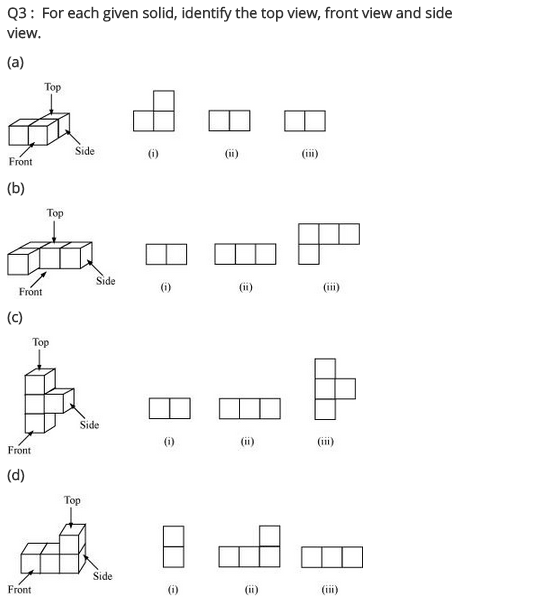

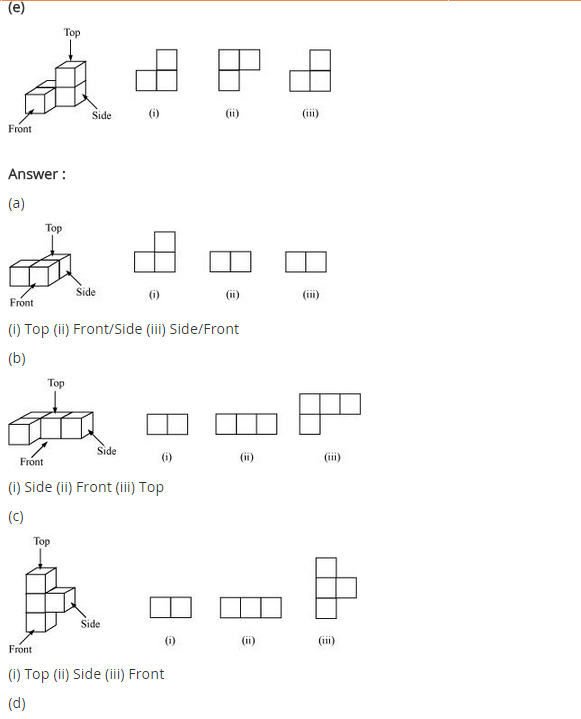

For each given solid, identify the top view, front view and side view.
Solution:

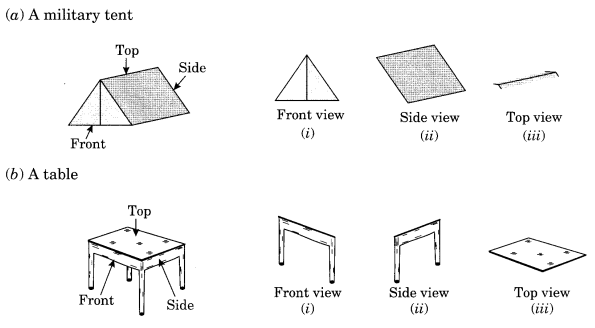

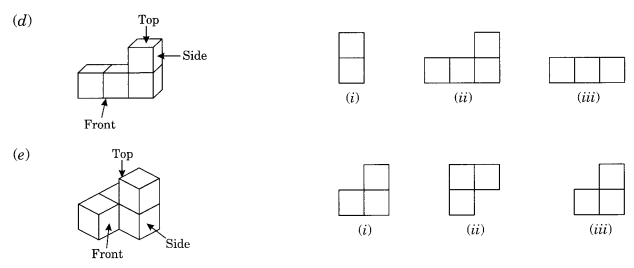

(a) (i) Top → (ii) Front → (iii) Side
(b) (i) Side → (ii) Front → (iii) Top
(c) (i) Top → (ii) Side → (iii) Front
(d) (i) Side → (ii) Front → (iii) Top
(e) (i) Front → (ii) Top → (iii) Side
Question 4.

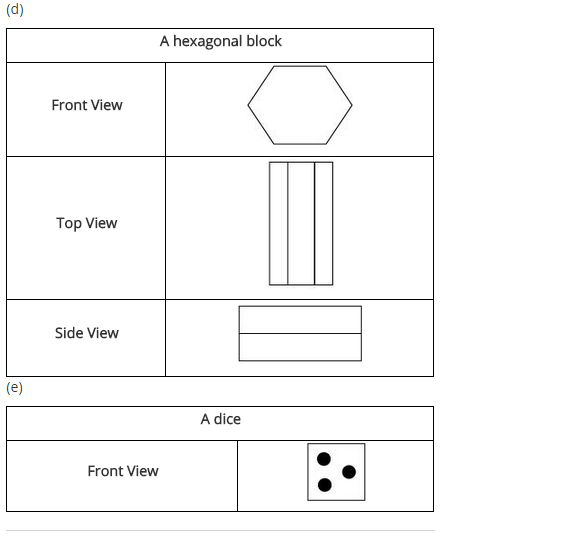

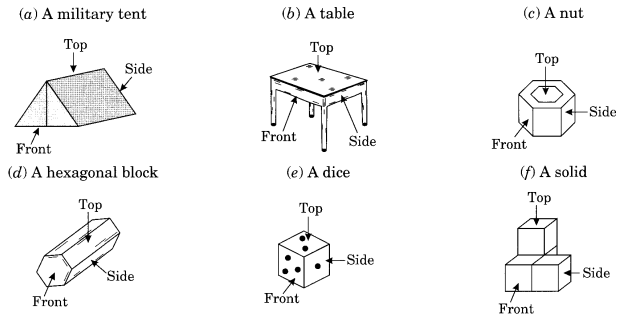

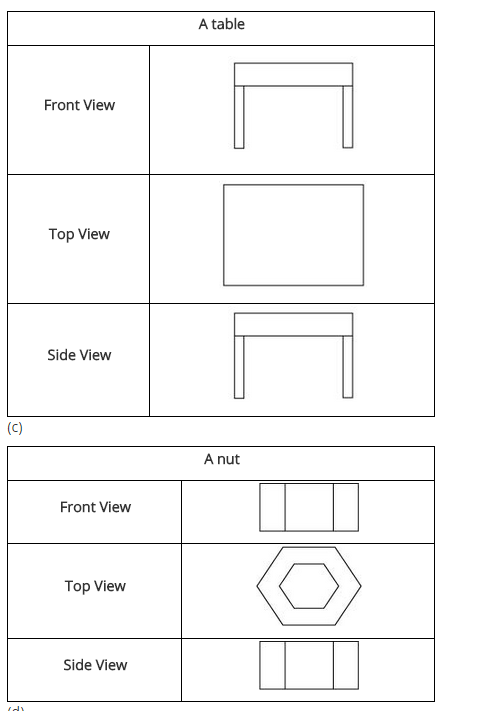

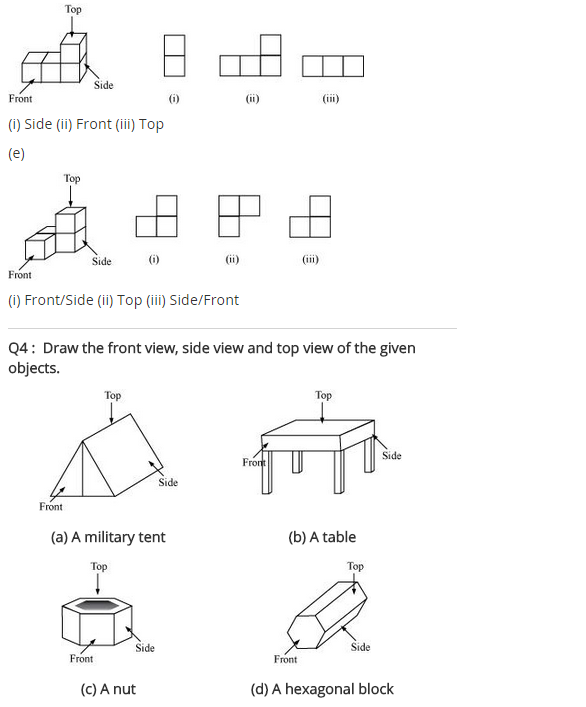

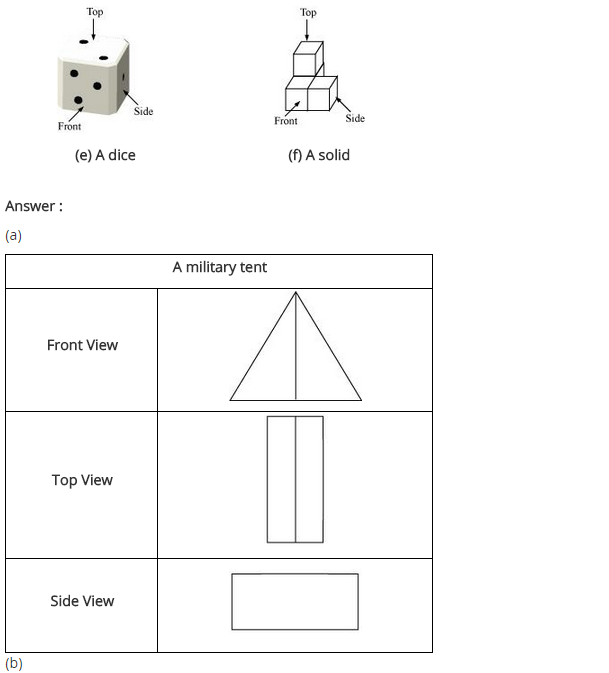

Draw the front view, side view and top view of the given objects.
Solution:
