Chapter 11 Mensuration Exercise 11.2

Chapter 11 Mensuration Exercise 11.2

Question 1.

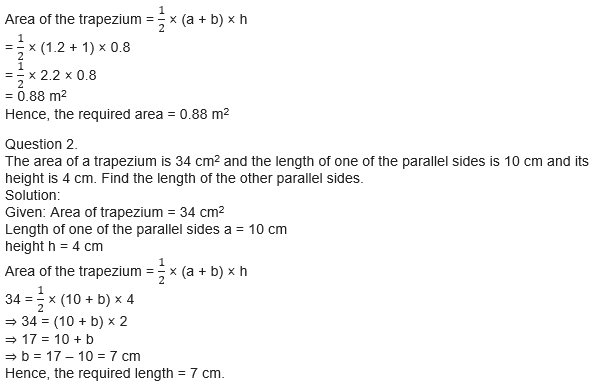

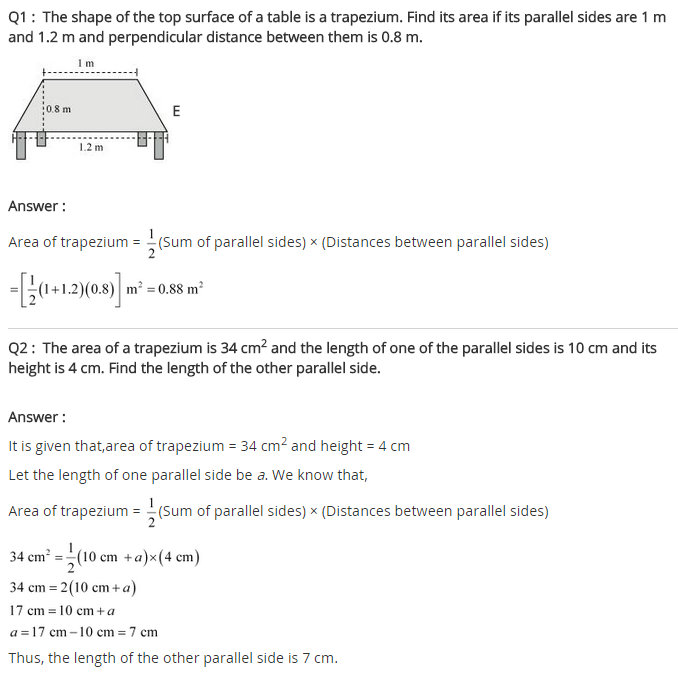

The shape of the top surface of a table is a trapezium. Find its area if its parallel sides are 1 m and 1.2 m and perpendicular distance between them is 0.8 m.

Solution:

Question 3.

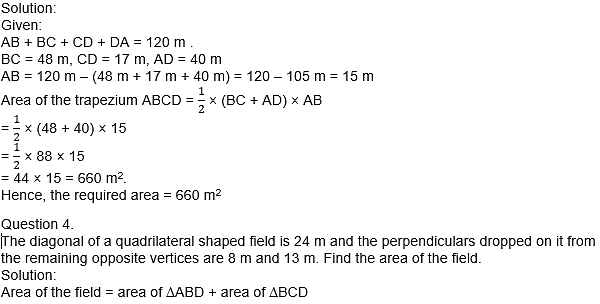

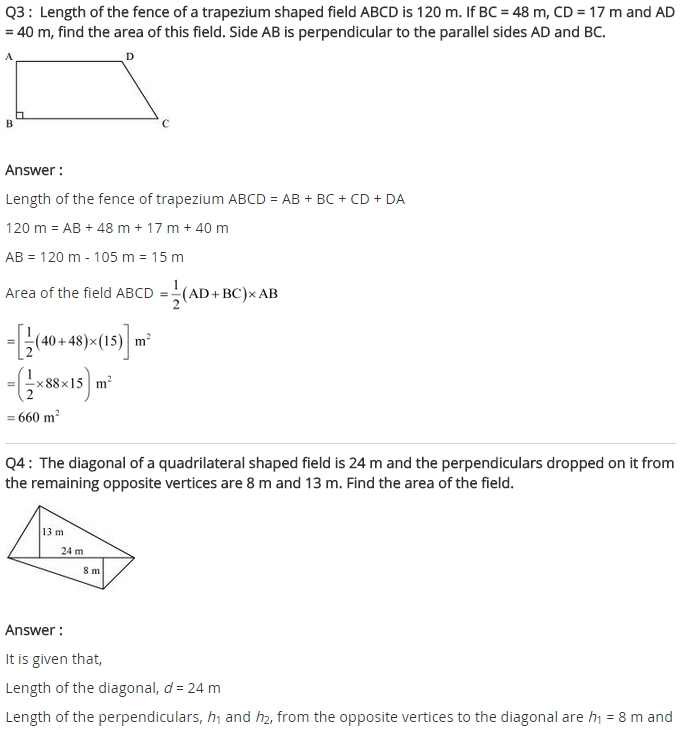

Length of the fence of a trapezium-shaped field ABCD is 120 m. If BC = 48 m, CD = 17 m and AD = 40 m, find the area of this field. Side AB is perpendicular to the parallel sides AD and BC.

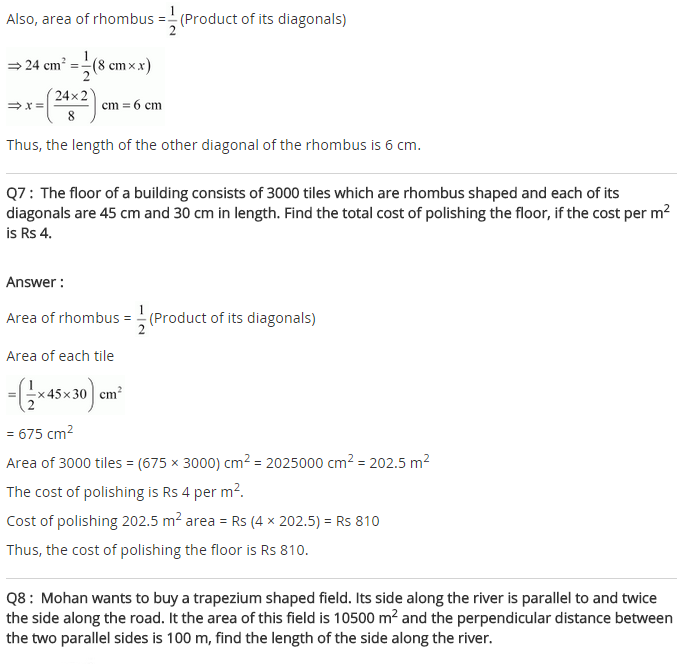

Question 7.
The floor of a building consists of 3000 tiles which are rhombus shaped and each of its diagonals are 45 cm and 30 cm in length. Find the total cost of polishing the floor, if the cost per m2 is ₹ 4.
Solution:
Given: Number of tiles = 3000
Length of the two diagonals of a tile = 45 cm and 30 cm

= 45 × 15
= 675 cm²
Area covered by 3000 tiles = 3000 × 675 cm² = 2025000 cm² = 202.5 m²
Cost of polishing the floor = 202.5 × 4 = ₹ 810
Hence, the required cost = ₹ 810.

Question 8.

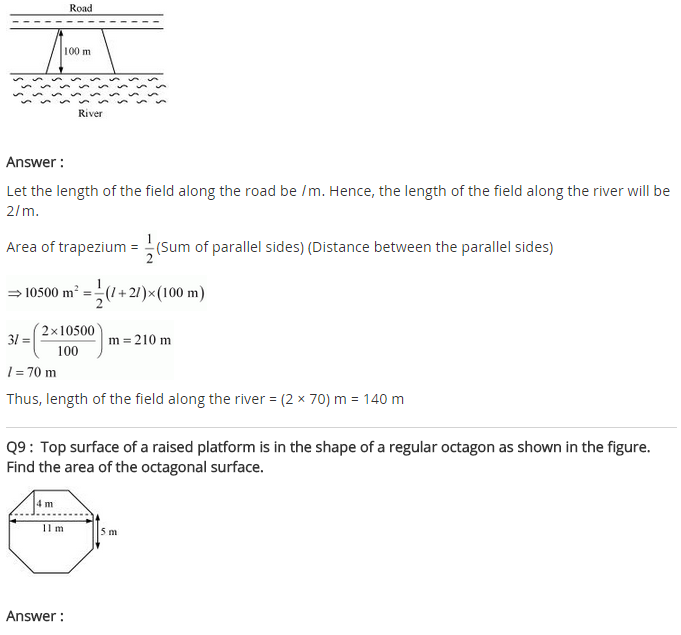

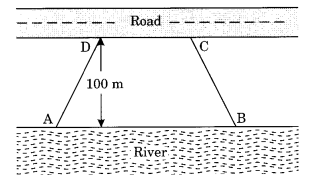

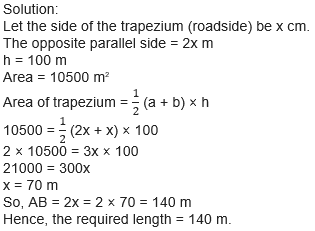

Mohan wants to buy a trapezium-shaped field. Its side along the river is parallel to and twice the side along the road. If the area of this field is 10500 m² and the perpendicular distance between the two parallel sides is 100 m, find the length of the side along the river.

Question 9.

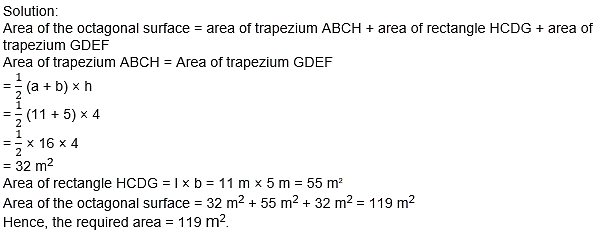

The top surface of a raised platform is in the shape of a regular octagon as shown in the figure. Find the area of the octagonal surface.

Question 10.
There is a pentagonal shaped park as shown in the figure. For finding its area Jyoti and Kavita divided it in two different ways.

Find the area of this park using both ways. Can you suggest some other way of finding its area?
Solution:

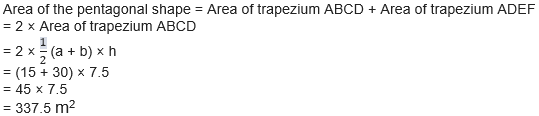

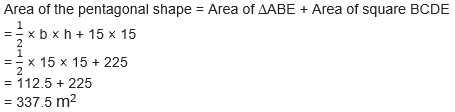

(i) From Jyoti’s diagram:

(ii) From Kavita’s diagram:

Yes, we can also find the other way to calculate the area of the given pentagonal shape.
Join CE to divide the figure into two parts, i.e., trapezium ABCE and right triangle EDC.
Area of ABCDE = Area of ∆EDC + Area of square ABCE

Question 11.

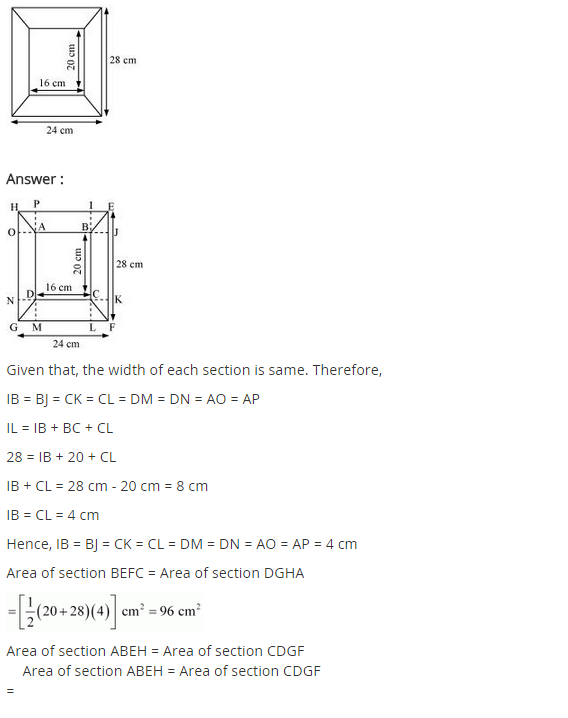

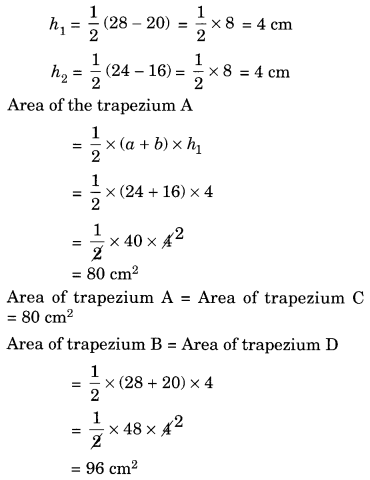

Diagram of the picture frame has outer dimensions = 24 cm × 28 cm and inner dimensions 16 cm × 20 cm. Find the area of each section of the frame, if the width of each section is the same.

Solution:

Hence, the areas of the four parts A, B, C, and D are 80 cm², 96 cm², 80 cm^2, and 96 cm² respectively.
